In [ ]:
!nvidia-smi
Installs¶
In [ ]:
!pip install -q -U git+https://github.com/albumentations-team/albumentations
!pip install -q "torch==1.4" "torchvision==0.5.0"
!pip install -q torch_optimizer
!pip install -q ensemble-boxes
!pip install -q timm
!pip install -q git+https://github.com/rwightman/efficientdet-pytorch
!pip install -q effdet
!pip install -q omegaconf
!pip install -q effdet omegaconf
!wget https://github.com/rwightman/efficientdet-pytorch/releases/download/v0.1/tf_efficientdet_d5-ef44aea8.pth
Imports¶
In [ ]:
import os
import cv2
import glob
import copy
import torch
import effdet
import random
import torchvision
import numpy as np
import pandas as pd
import imgaug as ia
%matplotlib inline
from numba import jit
import albumentations as A
from tqdm.auto import tqdm
import torch.optim as optim
from ensemble_boxes import *
from google.colab import drive
import torch_optimizer as optim1
from torchvision import transforms
from imgaug import augmenters as iaa
from matplotlib import pyplot as plt
import torch.optim.lr_scheduler as lr_scheduler
from torch.utils.data import Dataset,DataLoader
from torchvision.models.detection import FasterRCNN
from sklearn.model_selection import train_test_split
from albumentations.pytorch.transforms import ToTensorV2
from torchvision.models.detection.faster_rcnn import FastRCNNPredictor
from effdet import get_efficientdet_config, EfficientDet, DetBenchTrain, DetBenchPredict
from effdet.efficientdet import HeadNet
SEED = 44
def seed_everything(seed):
random.seed(seed)
os.environ['PYTHONHASHSEED'] = str(seed)
np.random.seed(seed)
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
torch.backends.cudnn.deterministic = True
torch.backends.cudnn.benchmark = True
seed_everything(SEED)
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print(device)
drive.mount('/content/gdrive')
Constants¶
In [ ]:
IMAGE_SIZE = 512
BATCH_SIZE = 2
Path define¶
In [ ]:
train = pd.read_csv("/content/gdrive/My Drive/Global Wheat Detection/train.csv")
train_path = "/content/gdrive/My Drive/Global Wheat Detection/train"
checkpoints_path= "/content/gdrive/My Drive/CV/פרויקטון/anna_saved_models/efficient -D7- new try"
In [ ]:
train.head(5)
Out[ ]:
In [ ]:
bboxes = np.stack(train['bbox'].apply(lambda x: np.fromstring(x[1:-1], sep=',')))
for i, column in enumerate(['x_min', 'y_min', 'width', 'height']):
train[column] = bboxes[:,i]
# bboxes = np.stack(train['bbox'].apply(lambda x: np.fromstring(x[1:-1], sep=',')))
# for i, column in enumerate(['x', 'y', 'w', 'h']):
# train[column] = bboxes[:,i]
# train["x_max"] = train.apply(lambda col: col.x_min + col.width, axis=1)
# train["y_max"] = train.apply(lambda col: col.y_min + col.height, axis = 1)
train.drop(columns=['bbox'], inplace=True)
train.drop(columns=['source'], inplace=True)
In [ ]:
train.head(5)
Out[ ]:
In [ ]:
image_id = 'c14c1e300'
image = cv2.imread(f'{train_path}/{image_id}.jpg', cv2.IMREAD_COLOR)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB).astype(np.float32)
image /= 255.0
plt.figure(figsize = (10, 10))
plt.imshow(image)
plt.axis('off')
plt.show()
Defining The Dataset class¶
https://pytorch.org/tutorials/intermediate/torchvision_tutorial.html#defining-your-model
- image: image of size (H, W)
- target: a dict containing the following fields:
- boxes : the coordinates of the N bounding boxes in [x0, y0, x1, y1] format, ranging from 0 to W and 0 to H
- labels : the label for each bounding box. 0 represents always the background class.
- image_id : an image identifier. It should be unique between all the images in the dataset, and is used during evaluation
3.CutMix Augmantation - explained in the preprocessing notebbok
- The implementation of cutmix author: https://www.kaggle.com/nvnnghia
- Refactoring and adaptation: https://www.kaggle.com/shonenkov
target['boxes'][:,[0,1,2,3]] = target['boxes'][:,[1,0,3,2]]In the library of EffDet they use yxyx format, so in order to train our model we need the boxe format tu be the same.
In [ ]:
class WheatDetectionDataset(Dataset):
def __init__(self, dataframe, image_dir, image_ids, transforms=None, test=False):
super().__init__()
self.image_ids = image_ids
self.df = dataframe
self.image_dir = image_dir
self.transforms = transforms
self.test = test
def __getitem__(self, index: int):
image_id = self.image_ids[index]
if self.test or random.random() > 0.5:
image, boxes = self.load_image_and_boxes(index)
else:
image, boxes = self.load_cutmix_image_and_boxes(index)
# there is only one class
labels = torch.ones((boxes.shape[0],), dtype=torch.int64)
target = {}
target['boxes'] = boxes
target['labels'] = labels
target['image_id'] = torch.tensor([index])
if self.transforms:
for i in range(20):
sample = self.transforms(**{
'image': image,
'bboxes': target['boxes'],
'labels': labels
})
assert len(sample['bboxes']) == labels.shape[0], 'not equal!'
if len(sample['bboxes']) > 0:
image = sample['image']
target['boxes'] = torch.stack(tuple(map(torch.tensor, zip(*sample['bboxes'])))).permute(1, 0)
#yxyx:
target['boxes'][:,[0,1,2,3]] = target['boxes'][:,[1,0,3,2]]
break
return image, target, image_id
def __len__(self) -> int:
return self.image_ids.shape[0]
def load_image_and_boxes(self, index):
image_id = self.image_ids[index]
records = self.df[self.df['image_id'] == image_id]
image = cv2.imread(f'{self.image_dir}/{image_id}.jpg', cv2.IMREAD_COLOR)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB).astype(np.float32)
image /= 255.0
boxes = records[['x_min', 'y_min', 'width', 'height']].values
boxes[:, 2] = boxes[:, 0] + boxes[:, 2] #PASCAL-VOC
boxes[:, 3] = boxes[:, 1] + boxes[:, 3]
# add coco
return image, boxes
def load_cutmix_image_and_boxes(self, index, imsize=1024):
w, h = imsize, imsize
s = imsize // 2
xc, yc = [int(random.uniform(imsize * 0.25, imsize * 0.75)) for _ in range(2)] # center x, y
indexes = [index] + [random.randint(0, self.image_ids.shape[0] - 1) for _ in range(3)]
result_image = np.full((imsize, imsize, 3), 1, dtype=np.float32)
result_boxes = []
for i, index in enumerate(indexes):
image, boxes = self.load_image_and_boxes(index)
if i == 0:
x1a, y1a, x2a, y2a = max(xc - w, 0), max(yc - h, 0), xc, yc # xmin, ymin, xmax, ymax (large image)
x1b, y1b, x2b, y2b = w - (x2a - x1a), h - (y2a - y1a), w, h # xmin, ymin, xmax, ymax (small image)
elif i == 1: # top right
x1a, y1a, x2a, y2a = xc, max(yc - h, 0), min(xc + w, s * 2), yc
x1b, y1b, x2b, y2b = 0, h - (y2a - y1a), min(w, x2a - x1a), h
elif i == 2: # bottom left
x1a, y1a, x2a, y2a = max(xc - w, 0), yc, xc, min(s * 2, yc + h)
x1b, y1b, x2b, y2b = w - (x2a - x1a), 0, max(xc, w), min(y2a - y1a, h)
elif i == 3: # bottom right
x1a, y1a, x2a, y2a = xc, yc, min(xc + w, s * 2), min(s * 2, yc + h)
x1b, y1b, x2b, y2b = 0, 0, min(w, x2a - x1a), min(y2a - y1a, h)
result_image[y1a:y2a, x1a:x2a] = image[y1b:y2b, x1b:x2b]
padw = x1a - x1b
padh = y1a - y1b
boxes[:, 0] += padw
boxes[:, 1] += padh
boxes[:, 2] += padw
boxes[:, 3] += padh
result_boxes.append(boxes)
result_boxes = np.concatenate(result_boxes, 0)
np.clip(result_boxes[:, 0:], 0, 2 * s, out=result_boxes[:, 0:])
result_boxes = result_boxes.astype(np.int32)
result_boxes = result_boxes[np.where((result_boxes[:,2]-result_boxes[:,0])*(result_boxes[:,3]-result_boxes[:,1]) > 0)]
return result_image, result_boxes
Augmentations - were explained in the Preprocessing notebook¶
In [ ]:
def make_augmantations(p = 1): #TODOO
return A.Compose(
[
A.OneOf([
A.HueSaturationValue(hue_shift_limit=0.2, sat_shift_limit= 0.2,
val_shift_limit=0.2, p=0.9),
A.RandomBrightnessContrast(brightness_limit=0.2,
contrast_limit=0.2, p=0.9),
],p=0.9),
A.ToGray(p=0.2),
A.HorizontalFlip(p=0.5),
A.VerticalFlip(p=0.6),
A.Resize(height=IMAGE_SIZE, width=IMAGE_SIZE, p=1),
A.Cutout(num_holes=8, max_h_size=20, max_w_size=20, p=0.8),
ToTensorV2(p=1.0),
],
p=1.0,
bbox_params=A.BboxParams(
format='pascal_voc',
min_area=0,
min_visibility=0,
label_fields=['labels']
)
)
def make_augmantations_val(p = 1):
return A.Compose(
[
A.Resize(height=IMAGE_SIZE, width=IMAGE_SIZE, p=1),
ToTensorV2(p=1.0),
],
p=1.0,
bbox_params=A.BboxParams(
format='pascal_voc',
min_area=0,
min_visibility=0,
label_fields=['labels']
)
)
DataLoader -¶
We found that the shuffle the data before spliting it to test and train, gives better results, we think that its helped because the images arranged in some order where the validation part knows only small amount of types of the images.
In [ ]:
def collate_fn(batch):
return tuple(zip(*batch))
random.shuffle(list(train['image_id'].unique()))
train_data, val_data = train_test_split(train['image_id'].unique(), test_size = 0.1, random_state = 2018) #train_val split using sklearn
train_transforms = make_augmantations()
val_transforms = make_augmantations_val()
train_set = WheatDetectionDataset(train, train_path, train_data, transforms = train_transforms, test= False)
train_loader = torch.utils.data.DataLoader(train_set, batch_size = BATCH_SIZE, shuffle=True, pin_memory=False, drop_last=True, num_workers = 2 , collate_fn = collate_fn)
val_set = WheatDetectionDataset(train, train_path , val_data, transforms = val_transforms, test = True)
val_loader = torch.utils.data.DataLoader(val_set, batch_size = BATCH_SIZE, shuffle=False, pin_memory=False, num_workers = 2 , collate_fn = collate_fn)
In [ ]:
def norm(img):
img -=img.min()
img/=img.max()
return img
Load few images with the data loader to show them¶
In [ ]:
batch = iter(train_loader)
imgs, labls, img_id = next(batch)
images = list(img.to(device) for img in imgs)
labels = [{k: v.to(device) for k, v in t.items()} for t in labls]
Vizualization - Display Boxes On Images¶
In [ ]:
def print_boxes(images, labels,threshold=None):
plt.figure(figsize=[25, 20])
for i, (img, label) in enumerate(zip(images, labels)):
plt.subplot(4, 4, i+1)
boxes = label['boxes']
scores=None
if 'scores' in label.keys():
scores=label['scores']
sample = img.permute(1,2,0).cpu().numpy()
sample = sample*255.0
for j in range(len(boxes)):
box=boxes[j]
active=True
if scores is not None:
score=str(float("{:.3f}".format(scores[j])))
if threshold is not None and float(score)<threshold:
active=False
else:
score=''
if active:
cv2.rectangle(sample,
(box[1], box[0]),
(box[3], box[2]),
(255, 0, 0), 2)
cv2.putText(
sample,
score,
org=(int(box[0]), int(box[1] )), # bottom left
fontFace=cv2.FONT_HERSHEY_PLAIN,
fontScale=1.5,
color=(255,0, 0),
thickness=2
)
plt.imshow(sample.astype(np.uint8))
plt.axis('off')
plt.show()
In [ ]:
print_boxes(images,labels)
EfficentDet Model Creation -¶
https://towardsdatascience.com/googles-efficientdet-an-overview-8d010fa15860
With the invention of the BiFPN, a new family of detectors has been created called EfficientDet. The architecture of EfficientDet is shown below and uses the EfficientNet as a backbone network.
EfficientNet PyTorch is a PyTorch re-implementation of EfficientNet. It is consistent with the original TensorFlow implementation, such that it is easy to load weights from a TensorFlow checkpoint. At the same time, we aim to make our PyTorch implementation as simple, flexible, and extensible as possible.

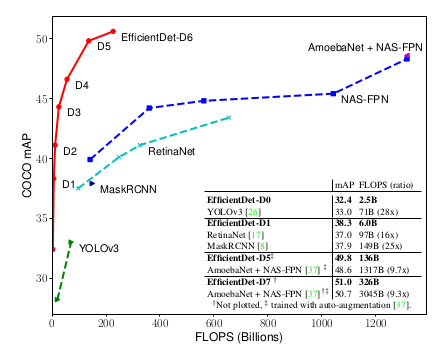

There are 8 differenet models D0-D7 for efficientDet model where each one of them have different arichtecture, where D0 is the smallest model and D7 is the largest one.
We chose to use this model, because we saw the scores and results on kaggle, and saw that people who used this models get higher and better scores, so we tried to improve our score after trying FasterRCNN and really saw that our results improved but not much. we used D5 and D7 models which gave us nice results, D7 gave better results than d5.
Load model -¶
while trying to load to model we ran into problems. beacuse we used the kaggle libreries on colab, and realized that they not updated, and the input of the model is now different. after we investigate the issue we realized that the libreries was updated and now getting other parameters as an input on
- Train() mode :
- image
- target
- and on Eval() mode :
- image
- image size
image scale
As well we realized that detBenchEval() were updated to detBenchPredict().
After we understood all those problems and solved them we implemented the training and evaluation methods.
In [ ]:
config = get_efficientdet_config('tf_efficientdet_d5')
# config = get_efficientdet_config('tf_efficientdet_d7')
model = EfficientDet(config, pretrained_backbone=True)
config.num_classes = 1
config.image_size = 512
model.class_net = HeadNet(config, num_outputs=config.num_classes, norm_kwargs=dict(eps=.001, momentum=.01))
model = DetBenchTrain(model, config)
Optimizers¶
we tried and trained our model with all the optimizers below, and found that adamw worked the best for us and gave the best result, of course after finding the right pararmeters of the LR.
- Adam - this method considered as a method of Stochastic Optimization is a technique implementing adaptive learning rate. Under normal SGD the learning rate has an equivalent type of effect for all the weights / parameters of the model.Parameters that would ordinarily receive smaller or less frequent updates receive larger updates with Adam (the reverse is also true).
- Radam - is a new variation of adam oprimizer, much less sensetive to chosen learning rates, and better accuracy.RAdam provides a dynamic heuristic to provide automated variance reduction and thus removes the need and manual tuning involved with a warmup during training.
learning rate. Radam
- Adamw - Adam optimizer with Decoupled Weight Decay Regularization.
- SGD - the difference from GD, is that instead of of run all the samples in the training set and do a single update in a particulaar iteration, in SGD we use only one training sample from the training set to do the update. using SGD will be faster cause we use only one training sample, but the error is bigger than in the case of GD.
In [ ]:
import torch.optim as optim
import torch_optimizer as optim1
import torch.optim.lr_scheduler as lr_scheduler
In [ ]:
def optimizers(params, option , lr = 1e-4, weight_decay=0):
if option == 'adamw':
optimizer = optim.AdamW(params, lr=lr, weight_decay= weight_decay)
if option == 'adam':
optimizer = optim.Adam(params, lr = lr , weight_decay=weight_decay)
if option == 'radam':
optimizer = optim1.RAdam(params, lr =lr, weight_decay=weight_decay)
if option == 'sgd':
optimizer = optim.SGD(params, lr= lr)
return optimizer
Training Loop + Valdiation¶
In [ ]:
def get_last_checkpoint(path):
cp_path = glob.glob(f'{path}/*.pt')
if len(cp_path) == 0 :
return None
return cp_path[np.argmax([int(x.split("/")[-1][2:].split(".")[0]) for x in cp_path])]
In [ ]:
def train_one_epoch_efficient(data_loader_train, model, optimizer, total, r_loss, train_loss):
target_res= {}
for i, (images, targets, img_id) in enumerate(tqdm(data_loader_train, desc = "train")):
images = torch.stack(images)
images = images.to(device).float()
batch_size = images.shape[0]
boxes = [target['boxes'].to(device).float() for target in targets]
labels = [target['labels'].to(device).float() for target in targets]
target_res['bbox'] = boxes
target_res['cls'] = labels
optimizer.zero_grad()
loss_dict = model(images, target_res)
losses = loss_dict['loss']
total += len(labels)
r_loss+= losses.item() * len(labels)
losses.backward()
optimizer.step()
train_loss = r_loss / total
return train_loss, r_loss, total
In [ ]:
def evaluation_efficient(data_loader_val, model, total, r_loss, val_loss):
target_res= {}
with torch.no_grad():
for idx, (images_val, labels_val, img_id_val) in enumerate(data_loader_val, 0):
images_val = torch.stack(images_val)
images_val = images_val.to(device).float()
boxes_val = [target['boxes'].to(device).float() for target in labels_val]
labels_val = [target['labels'].to(device).float() for target in labels_val]
target_res['bbox'] = boxes_val
target_res['cls'] = labels_val
loss_dict = model(images_val, target_res)
losses = loss_dict['loss']
r_loss += losses.item() * len(labels_val)
total += len(labels_val)
val_loss = r_loss / total
return val_loss, r_loss, total
In [ ]:
def training_loop_efficient(data_loader_train, data_loader_val ,model, optimizer, scheduler, cp_path = None, num_of_epochs = 20):
loss_list = list()
loss_list_val = list()
model.to(device)
loss_dict = {}
epoch = 0
if cp_path is not None:
checkpoint = torch.load(cp_path)
model.model.load_state_dict(checkpoint['model_state_dict'])
optimizer.load_state_dict(checkpoint['optimizer_state_dict'])
epoch = checkpoint['epoch']
loss_train = checkpoint['loss_train']
loss_val = checkpoint['loss_val']
print(epoch)
try:
for e in tqdm(range(epoch + 1, num_of_epochs)):
model.train()
train_loss = 0
val_loss = 0
r_loss = 0
total = 0
train_loss, r_loss, total = train_one_epoch_efficient(data_loader_train, model, optimizer, total, r_loss, train_loss)
loss_list.append(train_loss)
r_loss = 0
total = 0
val_loss, r_loss, total = evaluation_efficient(data_loader_val, model, total, r_loss, val_loss)
print('Validation:[%d, %5d] train_loss: %.15f' %(e, num_of_epochs, train_loss))
print('Validation:[%d, %5d] val_loss: %.15f' %(e, num_of_epochs, val_loss))
loss_list_val.append(val_loss)
scheduler.step(metrics=val_loss)
torch.save({
'epoch': e,
'model_state_dict': model.model.state_dict(),
'optimizer_state_dict': optimizer.state_dict(),
'loss_train': loss_list,
'loss_val': loss_list_val,
}, f'{checkpoints_path}/cp{e}.pt')
except RuntimeError as e:
print(e)
except KeyError as e:
print(e)
except TypeError as e:
print(e)
except KeyboardInterrupt as e:
print(e)
finally:
torch.cuda.empty_cache()
return loss_list, loss_list_val, model.cpu()
Scheduler(ReduceLROnPlateau) -¶
Reduce learning rate when a metric has stopped improving.
Models often benefit from reducing the learning rate by a factor of 2-10 once learning stagnates. This callback monitors a quantity and if no improvement is seen for a 'patience' number of epochs, the learning rate is reduced.
we used this scheduler which we saw in many notebooks that helping for the training, and after use it we saw that it really does.
factor: factor by which the learning rate will be reduced. new_lr = lr * factor.patience: number of epochs with no improvement after which learning rate will be reduced.verbose: int. 0: quiet, 1: update messages.mode: one of {'auto', 'min', 'max'}. In 'min' mode, the learning rate will be reduced when the quantity monitored has stopped decreasing; in 'max' mode it will be reduced when the quantity monitored has stopped increasing; in 'auto' mode, the direction is automatically inferred from the name of the monitored quantity.cooldown: number of epochs to wait before resuming normal operation after lr has been reduced.min_lr: lower bound on the learning rate.
In [ ]:
optimizer = optimizers(model.parameters(),'adam', lr = 2e-3, weight_decay=1e-5)
# optim = optimizers(model.parameters(),'sgd', lr = 1e-3)
# optimizer = optimizers(model.parameters(),'adamw', lr = 1e-5)
# scheduler = lr_scheduler.StepLR(optim, step_size=9, gamma=0.1)
scheduler_params = dict(
mode='min',
factor=0.5,
patience=1,
verbose=False,
threshold=0.0001,
threshold_mode='abs',
cooldown=0,
min_lr=1e-8,
eps=1e-08
)
scheduler = torch.optim.lr_scheduler.ReduceLROnPlateau(optimizer, **scheduler_params)
cp_path = get_last_checkpoint(checkpoints_path)
loss_list1, val_loss_list, best_model = training_loop_efficient(train_loader, val_loader, model, optimizer, scheduler, cp_path = cp_path , num_of_epochs = 11)
Plot the Graph Of the Training -¶
This graph has only 12 epochs just to demonstarte the convergence of the loss. we trained our models on 20-60 epochs.
We saved checkpoints of our model while training, and it was very comfortable for us, and removed worries about internet problems or 'cuda out of memory' problems, and we could conect to the drive from any account and load the checkpount from the point its stopped.
In [ ]:
# plt.plot(loss_list1, 'b')
# plt.plot(val_loss_list, 'r')
# plt.legend(('Train_Loss', 'Validation_Loss'), loc='upper right')
# plt.xlabel('Iterations')
# plt.ylabel('Loss')
# plt.show()
Understanding Evaluation Metrics¶
This competition is evaluated on the mean average precision at different intersection over union (IoU) thresholds.
To understand mAP, we will explain about precision and recall first.
- Recall is the True Positive Rate i.e. Of all the actual positives, how many are True positives predictions.
- Precision is the Positive prediction value i.e. Of all the positive predictions, how many are True positives predictions. Read more in evaluation metrics for classification.
mAP¶
mAP (mean average precision) is the average of AP. In some context, we compute the AP for each class and average them. But in some context, they mean the same thing. For example, under the COCO context, there is no difference between AP and mAP.
Evaluate AR + AP¶
Evaluate AR for object proposals, AP for instance detection/segmentation, AP for keypoint detection outputs using COCO's metrics
AP (Average precision) is a popular metric in measuring the accuracy of object detectors like Faster R-CNN, SSD, etc. Average precision computes the average precision value for recall value over 0 to 1.
Intersection over Union (IoU)¶
Intersection over Union is a measure of the magnitude of overlap between two bounding boxes (or, in the more general case, two objects). It calculates the size of the overlap between two objects, divided by the total area of the two objects combined.
The two boxes in the visualization overlap, but the area of the overlap is insubstantial compared with the area taken up by both objects together. IoU would be low - and would likely not count as a "hit" at higher IoU thresholds.
In [ ]:
@jit(nopython=True)
def calculate_iou(gt, pr, form='pascal_voc') -> float: ###TODO
"""Calculates the Intersection over Union.
Args:
gt: (np.ndarray[Union[int, float]]) coordinates of the ground-truth box
pr: (np.ndarray[Union[int, float]]) coordinates of the prdected box
form: (str) gt/pred coordinates format
- pascal_voc: [xmin, ymin, xmax, ymax]
- coco: [xmin, ymin, w, h]
Returns:
(float) Intersection over union (0.0 <= iou <= 1.0)
"""
if form == 'coco':
gt = gt.copy()
pr = pr.copy()
gt[2] = gt[0] + gt[2]
gt[3] = gt[1] + gt[3]
pr[2] = pr[0] + pr[2]
pr[3] = pr[1] + pr[3]
# Calculate overlap area
dx = min(gt[2], pr[2]) - max(gt[0], pr[0]) + 1
if dx < 0:
return 0.0
dy = min(gt[3], pr[3]) - max(gt[1], pr[1]) + 1
if dy < 0:
return 0.0
overlap_area = dx * dy
# Calculate union area
union_area = (
(gt[2] - gt[0] + 1) * (gt[3] - gt[1] + 1) +
(pr[2] - pr[0] + 1) * (pr[3] - pr[1] + 1) -
overlap_area
)
return overlap_area / union_area
@jit(nopython=True)
def find_best_match(gts, pred, pred_idx, threshold = 0.5, form = 'pascal_voc', ious=None) -> int:
"""Returns the index of the 'best match' between the
ground-truth boxes and the prediction. The 'best match'
is the highest IoU. (0.0 IoUs are ignored).
Args:
gts: (List[List[Union[int, float]]]) Coordinates of the available ground-truth boxes
pred: (List[Union[int, float]]) Coordinates of the predicted box
pred_idx: (int) Index of the current predicted box
threshold: (float) Threshold
form: (str) Format of the coordinates
ious: (np.ndarray) len(gts) x len(preds) matrix for storing calculated ious.
Return:
(int) Index of the best match GT box (-1 if no match above threshold)
"""
best_match_iou = -np.inf
best_match_idx = -1
for gt_idx in range(len(gts)):
if gts[gt_idx][0] < 0:
# Already matched GT-box
continue
iou = -1 if ious is None else ious[gt_idx][pred_idx]
if iou < 0:
iou = calculate_iou(gts[gt_idx], pred, form=form)
if ious is not None:
ious[gt_idx][pred_idx] = iou
if iou < threshold:
continue
if iou > best_match_iou:
best_match_iou = iou
best_match_idx = gt_idx
return best_match_idx
@jit(nopython=True)
def calculate_precision(gts, preds, threshold = 0.5, form = 'pascal_voc', ious=None) -> float:
"""Calculates precision for GT - prediction pairs at one threshold.
Args:
gts: (List[List[Union[int, float]]]) Coordinates of the available ground-truth boxes
preds: (List[List[Union[int, float]]]) Coordinates of the predicted boxes,
sorted by confidence value (descending)
threshold: (float) Threshold
form: (str) Format of the coordinates
ious: (np.ndarray) len(gts) x len(preds) matrix for storing calculated ious.
Return:
(float) Precision
"""
n = len(preds)
tp = 0
fp = 0
# for pred_idx, pred in enumerate(preds_sorted):
for pred_idx in range(n):
best_match_gt_idx = find_best_match(gts, preds[pred_idx], pred_idx,
threshold=threshold, form=form, ious=ious)
if best_match_gt_idx >= 0:
# True positive: The predicted box matches a gt box with an IoU above the threshold.
tp += 1
# Remove the matched GT box
gts[best_match_gt_idx] = -1
else:
# No match
# False positive: indicates a predicted box had no associated gt box.
fp += 1
# False negative: indicates a gt box had no associated predicted box.
fn = (gts.sum(axis=1) > 0).sum()
return tp / (tp + fp + fn)
@jit(nopython=True)
def calculate_image_precision(gts, preds, thresholds = (0.5, ), form = 'pascal_voc') -> float:
"""Calculates image precision.
Args:
gts: (List[List[Union[int, float]]]) Coordinates of the available ground-truth boxes
preds: (List[List[Union[int, float]]]) Coordinates of the predicted boxes,
sorted by confidence value (descending)
thresholds: (float) Different thresholds
form: (str) Format of the coordinates
Return:
(float) Precision
"""
n_threshold = len(thresholds)
image_precision = 0.0
ious = np.ones((len(gts), len(preds))) * -1
# ious = None
for threshold in thresholds:
precision_at_threshold = calculate_precision(gts.copy(), preds, threshold=threshold,
form=form, ious=ious)
image_precision += precision_at_threshold / n_threshold
return image_precision
Display prediction ov validation¶
In [ ]:
config = get_efficientdet_config('tf_efficientdet_d5')
model = EfficientDet(config, pretrained_backbone=False)
config.num_classes = 1
config.image_size=512
model.class_net = HeadNet(config, num_outputs=config.num_classes, norm_kwargs=dict(eps=.001, momentum=.01))
checkpoint = torch.load('/content/gdrive/My Drive/CV/פרויקטון/anna_saved_models/saved - efficient/d5 -אימון 4/cp25.pt')
model.load_state_dict(checkpoint['model_state_dict'])
model = DetBenchPredict(model, config)
model.to(device)
model.eval();
In [ ]:
batch = iter(train_loader)
imgs, labls, img_id = next(batch)
In [ ]:
import matplotlib.pyplot as plt
model.eval()
for j, (images,targets ,image_ids) in enumerate(val_loader):
break
try:
images = torch.stack(images).cuda().float()
x = torch.tensor([1.0] * 4, dtype=torch.float).to(device)
y = torch.tensor([images[0].shape[-2:]] * 4, dtype=torch.float).to(device)
out = model.forward(images,img_size=y,img_scales=x)
except Exception as e:
print(e)
finally:
torch.cuda.empty_cache()
Show Predicitions¶
In [ ]:
det =out[0]
predictions = []
boxes = det.detach().cpu().numpy()[:,:4]
scores = det.detach().cpu().numpy()[:,4]
indexes = np.where(scores > 0.3)[0]
boxes = boxes[indexes]
boxes[:, 2] = boxes[:, 2] + boxes[:, 0]
boxes[:, 3] = boxes[:, 3] + boxes[:, 1]
predictions.append({
'boxes': boxes[indexes],
'scores': scores[indexes],})
In [ ]:
sample = images[0].permute(1,2,0).cpu().numpy()
boxes = predictions[0]['boxes'].astype(np.int32).clip(min=0, max=511)
fig, ax = plt.subplots(1, 1, figsize=(16, 8))
for box in boxes:
cv2.rectangle(sample, (box[0], box[1]), (box[2], box[3]), (1, 0, 0), 2) #red
boxes = targets[0]['boxes'].numpy().astype(np.int32).clip(min=0, max=511)
for box in boxes:
cv2.rectangle(sample, (box[1], box[0]), (box[3], box[2]), (0, 0, 1), 2) #blue
ax.set_axis_off()
ax.imshow(sample);
In [ ]:
def print_boxes(images, labels, threshold=None, pred = False):
plt.figure(figsize=[30, 30])
for i, (img, label) in enumerate(zip(images, labels)):
plt.subplot(4, 4, i+1)
boxes = label['boxes']
scores=None
if 'scores' in label.keys():
scores=label['scores']
sample = img.permute(1,2,0).cpu().numpy()
sample = sample*255.0
for j in range(len(boxes)):
box = boxes[j]
active=True
if scores is not None:
score=str(float("{:.3f}".format(scores[j])))
if threshold is not None and float(score)<threshold:
active=False
else:
score=''
if pred:
active = False
cv2.rectangle(sample,
(box[0], box[1]),
(box[2], box[3]),
(255, 0, 0), 2)
cv2.putText(
sample,
score,
org=(int(box[0]), int(box[1] )), # bottom left
fontFace=cv2.FONT_HERSHEY_PLAIN,
fontScale=1.5,
color=(255,0, 0),
thickness=2
)
if active:
cv2.rectangle(sample,
(box[1], box[0]),
(box[3], box[2]),
(255, 0, 0), 2)
cv2.putText(
sample,
score,
org=(int(box[0]), int(box[1] )), # bottom left
fontFace=cv2.FONT_HERSHEY_PLAIN,
fontScale=1.5,
color=(255,0, 0),
thickness=2
)
plt.imshow(sample.astype(np.uint8))
plt.axis('off')
plt.show()
In [ ]:
print_boxes(images, targets)
In [ ]:
print_boxes(images, predictions, pred = True)
print IOU model¶
In [ ]:
validation_image_precisions = []
iou_thresholds = [x for x in np.arange(0.5, 0.76, 0.05)]
model.to(device)
model.eval()
# try:
for images, targets, _ in val_loader:
images = torch.stack(images).cuda().float()
x = torch.tensor([1.0] * 2, dtype=torch.float).to(device)
y = torch.tensor([images[0].shape[-2:]] * 2 , dtype=torch.float).to(device)
torch.cuda.empty_cache()
out = model.forward(images, img_size=y, img_scales=x)
for output, target in zip(out, targets):
boxes = output.cpu().detach().numpy()[:,:4]
scores = output.cpu().detach().numpy()[:,4]
boxes[:, 2] = boxes[:, 2] + boxes[:, 0]
boxes[:, 3] = boxes[:, 3] + boxes[:, 1]
boxes[:,[1,0,3,2]] = boxes[:,[0,1,2,3]]
# boxes[:, 2] = boxes[:, 2] - boxes[:, 0]# w = xman-xmin
# boxes[:, 3] = boxes[:, 3] - boxes[:, 1]# h = yman-ymin
gt_boxes = target['boxes'].detach().numpy()
preds_sorted_idx = np.argsort(scores)[::-1]
preds_sorted = boxes[preds_sorted_idx]
# for idx, image in enumerate(images):
image_precision = calculate_image_precision(gt_boxes, preds_sorted, thresholds=iou_thresholds,form='coco')
validation_image_precisions.append(image_precision)
print("Validation IOU: {0:.4f}".format(np.mean(validation_image_precisions)))
# except Exception as e:
# print(e)
# torch.cuda.empty_cache()
# except RuntimeError as e:
# print(e)
# except KeyError as e:
# print(e)
# except TypeError as e:
# print(e)
# except KeyboardInterrupt as e:
# print(e)
TEST Dataset¶
In [ ]:
def get_valid_transforms():
return A.Compose([
A.Resize(height=IMAGE_SIZE, width=IMAGE_SIZE, p=1.0),
ToTensorV2(p=1.0),
], p=1.0)
In [ ]:
DATA_ROOT_PATH = "/content/gdrive/My Drive/Global Wheat Detection/test"
class DatasetRetriever(Dataset):
def __init__(self, image_ids, transforms=None):
super().__init__()
self.image_ids = image_ids
self.transforms = transforms
def __getitem__(self, index: int):
image_id = self.image_ids[index]
image = cv2.imread(f'{DATA_ROOT_PATH}/{image_id}.jpg', cv2.IMREAD_COLOR)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB).astype(np.float32)
image /= 255.0
if self.transforms:
sample = {'image': image}
sample = self.transforms(**sample)
image = sample['image']
return image, image_id
def __len__(self) -> int:
return self.image_ids.shape[0]
DataSet + Data_loader¶
In [ ]:
dataset = DatasetRetriever(np.array([path.split('/')[-1][:-4] for path in glob.glob(f'{DATA_ROOT_PATH}/*.jpg')]),get_valid_transforms())
def collate_fn(batch):
return tuple(zip(*batch))
data_loader = DataLoader(
dataset,
batch_size=1,
shuffle=False,
num_workers=2,
drop_last=False,
collate_fn=collate_fn
)
Create submission format¶
In [ ]:
def format_prediction_string(boxes, scores):
pred_strings = []
for j in zip(scores, boxes):
pred_strings.append("{0:.4f} {1} {2} {3} {4}".format(j[0], j[1][0], j[1][1], j[1][2], j[1][3]))
return " ".join(pred_strings)
In [ ]:
batch = iter(data_loader)
imgs,img_id = next(batch)
In [ ]:
results = []
model.eval()
model.to(device)
images = torch.stack(imgs).cuda().float()
x = torch.tensor([1.0] * 4, dtype=torch.float).to(device)
y = torch.tensor([images[0].shape[-2:]] * 4, dtype=torch.float).to(device)
predictions = model.forward(images, img_size=y, img_scales=x)
Submission without wbf¶
In [ ]:
results = []
model.eval()
model.to(device)
for imgs, image_ids in data_loader:
images = torch.stack(imgs).cuda().float()
x = torch.tensor([1.0] * 4, dtype=torch.float).to(device)
y = torch.tensor([images[0].shape[-2:]] * 4, dtype=torch.float).to(device)
predictions = model.forward(images, img_size=y, img_scales=x)
for i, pred in enumerate(predictions):
boxes = pred.cpu().detach().numpy()[:,:4]
scores = pred.cpu().detach().numpy()[:,4]
boxes = (boxes*(2)).round().astype(np.int32).clip(min=0, max=1023)
image_id = image_ids[i]
indexes = np.where(scores > 0.3)[0]
boxes = boxes[indexes]
boxes[:, 2] = boxes[:, 2] + boxes[:, 0] # xmax
boxes[:, 3] = boxes[:, 3] + boxes[:, 1] # ymin
# boxes[:,[1,0,3,2]] = boxes[:,[0,1,2,3]]
fig, ax = plt.subplots(1, 1, figsize=(6, 6))
sample = images[i].permute(1,2,0).cpu().numpy()
sample = cv2.resize(sample, (1024,1024))
for j,box in enumerate(boxes):
cv2.rectangle(sample, (box[0], box[1]), (box[2], box[3]), (1, 0, 0), 3)
score=str(float("{:.3f}".format(scores[j])))
cv2.putText(
sample,
score,
org=(int(box[0]), int(box[1] )), # bottom left
fontFace=cv2.FONT_HERSHEY_PLAIN,
fontScale=3,
color=(255,0, 0),
thickness=2
)
ax.set_axis_off()
ax.imshow(sample)
boxes[:, 2] = boxes[:, 2] - boxes[:, 0]
boxes[:, 3] = boxes[:, 3] - boxes[:, 1]
result = {
'image_id': image_id,
'PredictionString': format_prediction_string(boxes, scores)
}
results.append(result)
In [ ]:
test_df = pd.DataFrame(results, columns=['image_id', 'PredictionString'])
test_df.to_csv('submission.csv', index=False)
test_df.head(10)
Out[ ]:
WBF over TTA¶
TTA¶
What is Test Time Augmentation ?¶
Similar to what Data Augmentation is doing to the training set, the purpose of Test Time Augmentation is to perform random modifications to the test images. Thus, instead of showing the regular, “clean” images, only once to the trained model, we will show it the augmented images several times. We will then average the predictions of each corresponding image and take that as our final guess.
In [ ]:
class BaseWheatTTA:
""" author: @shonenkov """
image_size = IMAGE_SIZE
def augment(self, image):
raise NotImplementedError
def batch_augment(self, images):
raise NotImplementedError
def deaugment_boxes(self, boxes):
raise NotImplementedError
class TTAHorizontalFlip(BaseWheatTTA):
""" author: @shonenkov """
def augment(self, image):
return image.flip(1)
def batch_augment(self, images):
return images.flip(2)
def deaugment_boxes(self, boxes):
boxes[:, [1,3]] = self.image_size - boxes[:, [3,1]]
return boxes
class TTAVerticalFlip(BaseWheatTTA):
""" author: @shonenkov """
def augment(self, image):
return image.flip(2)
def batch_augment(self, images):
return images.flip(3)
def deaugment_boxes(self, boxes):
boxes[:, [0,2]] = self.image_size - boxes[:, [2,0]]
return boxes
class TTARotate90(BaseWheatTTA):
""" author: @shonenkov """
def augment(self, image):
return torch.rot90(image, 1, (1, 2))
def batch_augment(self, images):
return torch.rot90(images, 1, (2, 3))
def deaugment_boxes(self, boxes):
res_boxes = boxes.copy()
res_boxes[:, [0,2]] = self.image_size - boxes[:, [1,3]]
res_boxes[:, [1,3]] = boxes[:, [2,0]]
return res_boxes
class TTARotate180(BaseWheatTTA):
""" author: @shonenkov """
def augment(self, image):
return torch.rot90(image, 2, (1, 2))
def batch_augment(self, images):
return torch.rot90(images, 2, (2, 3))
def deaugment_boxes(self, boxes):
boxes[:, [0,1,2,3]] = self.image_size - boxes[:, [2,3,0,1]]
return boxes
class TTARotate270(BaseWheatTTA):
""" author: @shonenkov """
def augment(self, image):
return torch.rot90(image, 3, (1, 2))
def batch_augment(self, images):
return torch.rot90(images, 3, (2, 3))
def deaugment_boxes(self, boxes):
res_boxes = boxes.copy()
res_boxes[:, [0,2]] = boxes[:, [1,3]]
res_boxes[:, [1,3]] = self.image_size - boxes[:, [2,0]]
return res_boxes
class TTACompose(BaseWheatTTA):
""" author: @shonenkov """
def __init__(self, transforms):
self.transforms = transforms
def augment(self, image):
for transform in self.transforms:
image = transform.augment(image)
return image
def batch_augment(self, images):
for transform in self.transforms:
images = transform.batch_augment(images)
return images
def prepare_boxes(self, boxes):
result_boxes = boxes.copy()
result_boxes[:,0] = np.min(boxes[:, [0,2]], axis=1)
result_boxes[:,2] = np.max(boxes[:, [0,2]], axis=1)
result_boxes[:,1] = np.min(boxes[:, [1,3]], axis=1)
result_boxes[:,3] = np.max(boxes[:, [1,3]], axis=1)
return result_boxes
def deaugment_boxes(self, boxes):
for transform in self.transforms[::-1]:
boxes = transform.deaugment_boxes(boxes)
return self.prepare_boxes(boxes)
In [ ]:
from ensemble_boxes import *
WBF¶
Suppose we have several different models and predictions for each of them. Such case is often used in practice, when the predictions are additionally obtained from a vertically reflected image. The question arises whether it is possible to combine predictions in such a way that the quality of predictions for a given metric improves. The answer to this question is yes. For this, NMS (Non-maximum Suppression) method and its Soft-NMS extension are often used, which give good results. In the paper they propose a new Weighted Boxes Fusion (WBF) method that allows you to combine the predictions of various Object Detection models. Unlike the above methods, which simply remove part of the predictions, the proposed method uses all the predicted rectangles, which can significantly improve the quality of the combined rectangles
In [ ]:
def make_tta_predictions(images, score_threshold=0.35):
model.eval()
model.to(device)
with torch.no_grad():
images = torch.stack(images).float().cuda()
predictions = []
for tta_transform in tta_transforms:
result = []
x = torch.tensor([1.0] * 2, dtype=torch.float).to(device)
y = torch.tensor([images[0].shape[-2:]] * 2 , dtype=torch.float).to(device)
det = model(tta_transform.batch_augment(images.clone()),img_size=y, img_scales=x)
for i in range(images.shape[0]):
boxes = det.cpu().detach().numpy()[:,:4]
scores = det.cpu().detach().numpy()[:,4]
indexes = np.where(scores > score_threshold)[0]
boxes = boxes[indexes]
# boxes[:, 2] = boxes[:, 2] + boxes[:, 0]
# boxes[:, 3] = boxes[:, 3] + boxes[:, 1]
boxes = tta_transform.deaugment_boxes(boxes.copy())
result.append({
'boxes': boxes,
'scores': scores[indexes],
})
predictions.append(result)
return predictions
# def run_wbf(predictions, image_index, image_size=512, iou_thr=0.4, skip_box_thr=0.3,score_threshold= 0.3, weights=None):
# boxes = [(prediction[image_index]['boxes']/(image_size)).tolist() for prediction in predictions]
# scores = [prediction[image_index]['scores'].tolist() for prediction in predictions]
# labels = [np.ones(prediction[image_index]['scores'].shape[0]).astype(int).tolist() for prediction in predictions]
# boxes, scores, labels = ensemble_boxes_wbf.weighted_boxes_fusion(boxes, scores, labels, weights=None, iou_thr=iou_thr, skip_box_thr=skip_box_thr)
# indexes = np.where(scores > score_threshold)[0]
# boxes = boxes[indexes]
# scores = scores[indexes]
# boxes = boxes*(image_size)
# return boxes, scores, labels
def run_wbf(predictions, image_index, image_size=IMAGE_SIZE, iou_thr=0.44, skip_box_thr=0.43, weights=None):
boxes = [(prediction[image_index]['boxes']/(image_size)).tolist() for prediction in predictions]
scores = [prediction[image_index]['scores'].tolist() for prediction in predictions]
labels = [np.ones(prediction[image_index]['scores'].shape[0]).astype(int).tolist() for prediction in predictions]
boxes, scores, labels = ensemble_boxes_wbf.weighted_boxes_fusion(boxes, scores, labels, weights=None, iou_thr=iou_thr, skip_box_thr=skip_box_thr)
boxes = boxes*(image_size)
return boxes, scores, labels
In [ ]:
from itertools import product
tta_transforms = []
for tta_combination in product([TTAHorizontalFlip(), None],
[TTAVerticalFlip(), None],
[TTARotate90(), TTARotate180(), TTARotate270(), None]):
tta_transforms.append(TTACompose([tta_transform for tta_transform in tta_combination if tta_transform]))
validation_image_precisions = []
iou_thresholds = [x for x in np.arange(0.5, 0.76, 0.05)]
model.eval()
model.to(device)
for images, targets, _ in tqdm(val_loader):
predictions = make_tta_predictions(images)
for i,img in enumerate(range(len(images))):
# sample = images[i].permute(1,2,0).cpu().numpy()
boxes, scores, labels = run_wbf(predictions, image_index=i)
boxes = boxes.round().astype(np.int32).clip(min=0, max=IMAGE_SIZE-1)
# images = list(img.to(device) for img in images)
# outputs = model(images)
# for output, target in zip(outputs, targets):
# preds = output['boxes'].cpu().detach().numpy()
# scores = output['scores'].cpu().detach().numpy()
gt_boxes = targets[i]['boxes'].detach().numpy()
preds_sorted_idx = np.argsort(scores)[::-1]
preds_sorted = boxes[preds_sorted_idx]
# # for idx, image in enumerate(images):
image_precision = calculate_image_precision(preds_sorted,
gt_boxes,
thresholds=iou_thresholds,
form='pascal_voc')
validation_image_precisions.append(image_precision)
print("Validation IOU: {0:.4f}".format(np.mean(validation_image_precisions)))
Submission with wbf +tta¶
In [ ]:
results = []
model.eval()
model.to(device)
for images, image_ids in data_loader:
predictions = make_tta_predictions(images)
for i, image in enumerate(images):
boxes, scores, labels = run_wbf(predictions, image_index=i)
boxes = (boxes*2).round().astype(np.int32).clip(min=0, max=1023)
image_id = image_ids[i]
boxes[:, 2] = boxes[:, 2] + boxes[:, 0] # xmax
boxes[:, 3] = boxes[:, 3] + boxes[:, 1] # ymin
boxes[:,[1,0,3,2]] = boxes[:,[0,1,2,3]]
fig, ax = plt.subplots(1, 1, figsize=(6, 6))
sample = images[i].permute(1,2,0).cpu().numpy()
sample = cv2.resize(sample, (1024,1024))
for j,box in enumerate(boxes):
cv2.rectangle(sample, (box[0], box[1]), (box[2], box[3]), (1, 0, 0), 3)
score=str(float("{:.3f}".format(scores[j])))
cv2.putText(
sample,
score,
org=(int(box[0]), int(box[1] )), # bottom left
fontFace=cv2.FONT_HERSHEY_PLAIN,
fontScale=3,
color=(255,0, 0),
thickness=2
)
ax.set_axis_off()
ax.imshow(sample)
boxes[:, 2] = boxes[:, 2] - boxes[:, 0]
boxes[:, 3] = boxes[:, 3] - boxes[:, 1]
result = {
'image_id': image_id,
'PredictionString': format_prediction_string(boxes, scores)
}
results.append(result)
In [ ]:
from itertools import product
tta_transforms = []
for tta_combination in product([TTAHorizontalFlip(), None],
[TTAVerticalFlip(), None],
[TTARotate90(), TTARotate180(), TTARotate270(), None]):
tta_transforms.append(TTACompose([tta_transform for tta_transform in tta_combination if tta_transform]))
validation_image_precisions = []
iou_thresholds = [x for x in np.arange(0.5, 0.76, 0.05)]
model.eval()
model.to(device)
results = []
for images, image_ids in data_loader:
predictions = make_tta_predictions(images)
for i,img in enumerate(images):
# sample = images[i].permute(1,2,0).cpu().numpy()
boxes, scores, labels = run_wbf(predictions, image_index=i)
boxes_s = (boxes*(2)).astype(np.int32).clip(min=0, max=1023)
image_id = image_ids[i]
boxes_s[:, 2] = boxes_s[:, 2] - boxes_s[:, 0]
boxes_s[:, 3] = boxes_s[:, 3] - boxes_s[:, 1]
result = {
'image_id': image_id,
'PredictionString': format_prediction_string(boxes_s,scores)
}
results.append(result)
In [ ]:
test_df = pd.DataFrame(results, columns=['image_id', 'PredictionString'])
test_df.to_csv('submission.csv', index=False)
test_df.head(10)
In [ ]:
for j, (images, image_ids) in enumerate(data_loader):
break
predictions = make_tta_predictions(images)
i = 1
sample = images[i].permute(1,2,0).cpu().numpy()
boxes, scores, labels = run_wbf(predictions, image_index=i,image_size=IMAGE_SIZE)
boxes = boxes.round().astype(np.int32).clip(min=0, max=IMAGE_SIZE-1)
fig, ax = plt.subplots(1, 1, figsize=(16, 8))
for box in boxes:
cv2.rectangle(sample, (box[0], box[1]), (box[2], box[3]), (1, 0, 0), 1)
ax.set_axis_off()
ax.imshow(sample);
